Rocker 300 Oil Free Vacuum Pump

Oil Free Vacuum Pump / Dry Vacuum Pump Features

◆ No air pollution, maintenance free
Rocker series lab vacuum pumps are driven by Piston, without the need of lubricant, regular oil changes and maintenance; with no oil pollution.

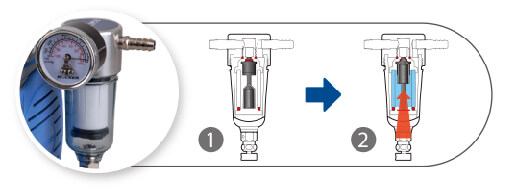

◆ Prote™ overflow protection  <ONLINE SHOW!>

Rocker 300 lab vacuum pump is equipped with Prote™ overflow protection which can prevent a large amount of liquid from being sucked into the pump.

◆ Moisture trap with filter cartridge
Rocker 300 lab vacuum pump is equipped with filter cartridge at the air inlet to filter particle and moisture to prolong the life of pump.

◆ Vacuum regulator
Rocker series lab vacuum pumps are equipped with vacuum regulator to adjust vacuum.

◆ Thermal protection device
Every motor of Rocker series lab vacuum pumps has a built-in thermal protection device to shut off the pump automatically when overheated and then resume working when the temperature cools down.

Oil Free Vacuum Pump / Dry Vacuum Pump International Certificates

◆ CE certification
◆ CSA certification
◆ IP 30 protection
◆ RoHS certification

Oil Free Vacuum Pump / Dry Vacuum Pump Applications

◆ Vacuum filtration
◆ Suspended solid test
◆ Microbiological test
◆ Air sampling

Specification (110V, 60Hz) ◆ Max. power：65W ◆ Max. current：0.7A ◆ Max. vacuum：105 mbar ◆ Max. flow rate：23 L/min ◆ Vacuum Regulator：Yes ◆ Overflow protection：Yes ◆ Filter cartridge：Yes ◆ Thermal protection：Yes ◆ Motor rotation speed：1750 RPM ◆ Horse power：1/8 HP ◆ Noise level：50 dB ◆ Hose barb：ID8 ◆ Net weight：4.1 Kg ◆ Dimension (LxWxH)：26.8 x 13.5 x 20.4 cm Specification (220V, 50Hz) ◆ Max. power：60W ◆ Max. current：0.3A ◆ Max. vacuum：105 mbar ◆ Max. flow rate：20 L/min ◆ Vacuum Regulator：Yes ◆ Overflow protection：Yes ◆ Filter cartridge：Yes ◆ Thermal protection：Yes ◆ Motor rotation speed：1450 RPM ◆ Horse power：1/8 HP ◆ Noise level：50 dB ◆ Hose barb：ID8 ◆ Net weight：4.1 Kg ◆ Dimension (LxWxH)：26.8 x 13.5 x 20.4 cm


Oil Free Vacuum Pump / Dry Vacuum Pump Ordering Information :



Product Part Number	Product
◆ 167300-22	Rocker 300, Vacuum Pump AC110V, 60Hz (AC220V, 50Hz)

Youtube Link https://youtu.be/Bim4cp_gXuw
