Rocker 400 Oil Free Vacuum Pump

Oil Free Vacuum Pump / Dry Vacuum Pump Features:

◆ No air pollution, maintenance free
Rocker series lab vacuum pumps are driven by Piston, without the need of lubricant, regular oil changes and maintenance; with no oil pollution.

◆ Moisture trap with filter cartridge
Rocker 400 lab vacuum pump is equipped with filter cartridge at the air inlet to filter particle and moisture to prolong the life of pump.

◆ Vacuum regulator
Rocker series lab vacuum pumps are equipped with vacuum regulator to adjust vacuum.

◆ Thermal protection device
Every motor of Rocker series lab vacuum pumps has a built-in thermal protection device to shut off the pump automatically when overheated and then resume working when the temperature cools down.

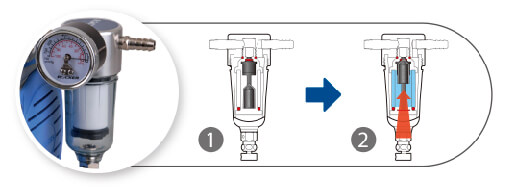

◆ Prote™ overflow protection  <ONLINE SHOW!>

Rocker 400 lab vacuum pump is equipped with Prote™ overflow protection which can prevent a large amount of liquid from being sucked into the pump.



Oil Free Vacuum Pump / Dry Vacuum Pump International Certificates:

◆ CE certification
◆ CSA certification
◆ IP 30 protection
◆ RoHS certification

Oil Free Vacuum Pump / Dry Vacuum Pump Applications

◆ Suspended solid test
◆ Vacuum filtration
◆ Microbiological test
◆ Air sampling

Specification
Rocker400 Specification (110V, 60Hz) ◆ Max. power：100 W ◆ Max. current：1.0 A ◆ Max. vacuum：105 mbar ◆ Max. flow rate：37 L/min ◆ Vacuum regulator：Yes ◆ Overflow protection：Yes ◆ Filter cartridge：Yes ◆ Thermal protection：Yes ◆ Motor rotation speed： 1750 RPM ◆ Horse power：1/6 HP ◆ Noise level：52 dB ◆ Hose barb：ID8 ◆ Net weight：5.2 Kg ◆ Dimension (LxWxH)：31 x 13.5 x 20.4 cm Specification (220V, 50Hz) ◆ Max. power：80W ◆ Max. current：0.4A ◆ Max. vacuum：105 mbar ◆ Max. flow rate：34 L/min ◆ Vacuum regulator：Yes ◆ Overflow protection：Yes ◆ Filter cartridge：Yes ◆ Thermal protection：Yes ◆ Motor rotation speed：1450 RPM ◆ Horse power：1/6 HP ◆ Noise level：52 dB ◆ Hose barb：ID8 ◆ Net weight：5.2 Kg ◆ Dimension (LxWxH)：31 x 13.5 x 20.4 cm
